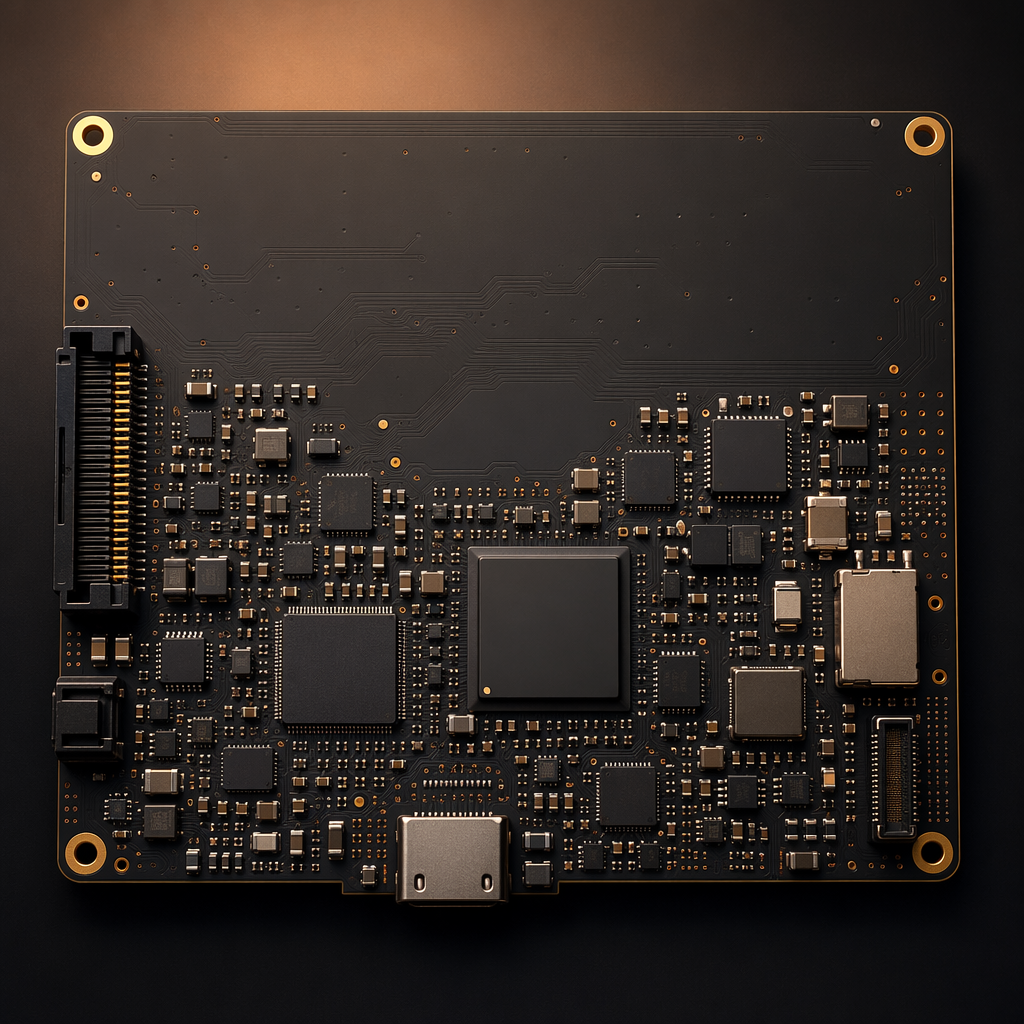

PCB assembly capabilities
PCB Assembly

Full-Service PCBA & SMT Assembly

8 automated SMT lines. 01005 to BGA 0.3mm. 3D AOI + X-Ray. IPC Class 3.

Assembly Specifications

SMT & THT Capabilities

ParameterCapability
SMT Lines8 fully automatic lines (Fuji NXT III + Yamaha YSM20)
Placement Speed0.04s / chip (combined > 8 million placements / day)
Minimum Component01005 (0.4 × 0.2mm)
BGA Pitch0.3mm minimum
Max Board Size510mm × 460mm
Component TypesBGA, QFN, QFP, CSP, μBGA, 0201, 01005, PoP, LGA
SolderingLead-Free (RoHS) / Leaded — Selective soldering available
DIP Lines4 lines — wave soldering + selective soldering
Inspection3D SPI + 3D AOI + X-Ray (BGA) + ICT + FCT
Conformal CoatingAcrylic, Silicone, Polyurethane — automated spraying
Value-Add ServicesBox Build, Cable Assembly, Wire Harness, Potting & Encapsulation

State-of-the-Art SMT Lines

Our 8 SMT lines feature Fuji NXT III and Yamaha YSM20 high-speed placers, achieving placement speeds of 0.04 seconds per chip. Combined daily output exceeds 8 million component placements. Each line is equipped with 3D SPI for solder paste inspection, dual-lane reflow ovens with 12-zone profiling, and automated board handling.

Fuji NXT IIIYamaha YSM2012-Zone Reflow3D SPI

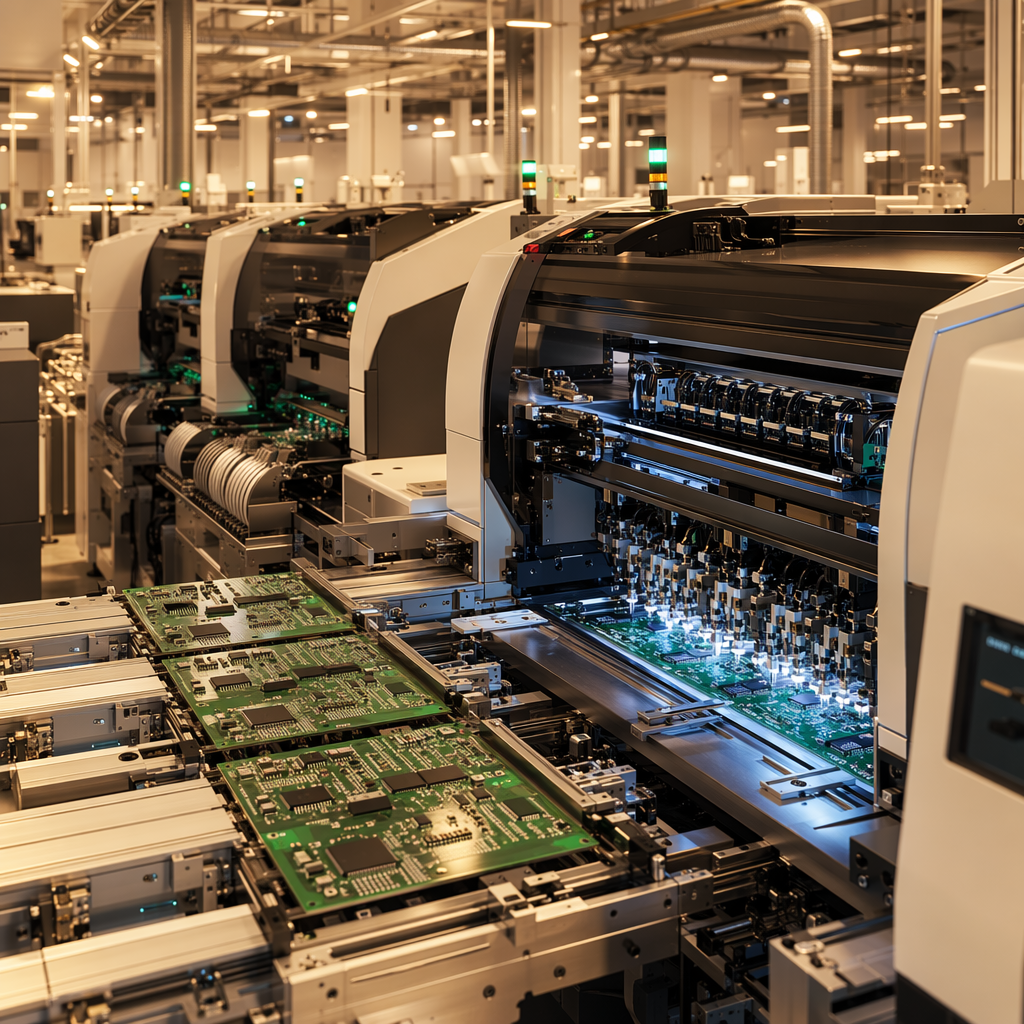

SMT production line
SMT Process

How We Build Your Assembly

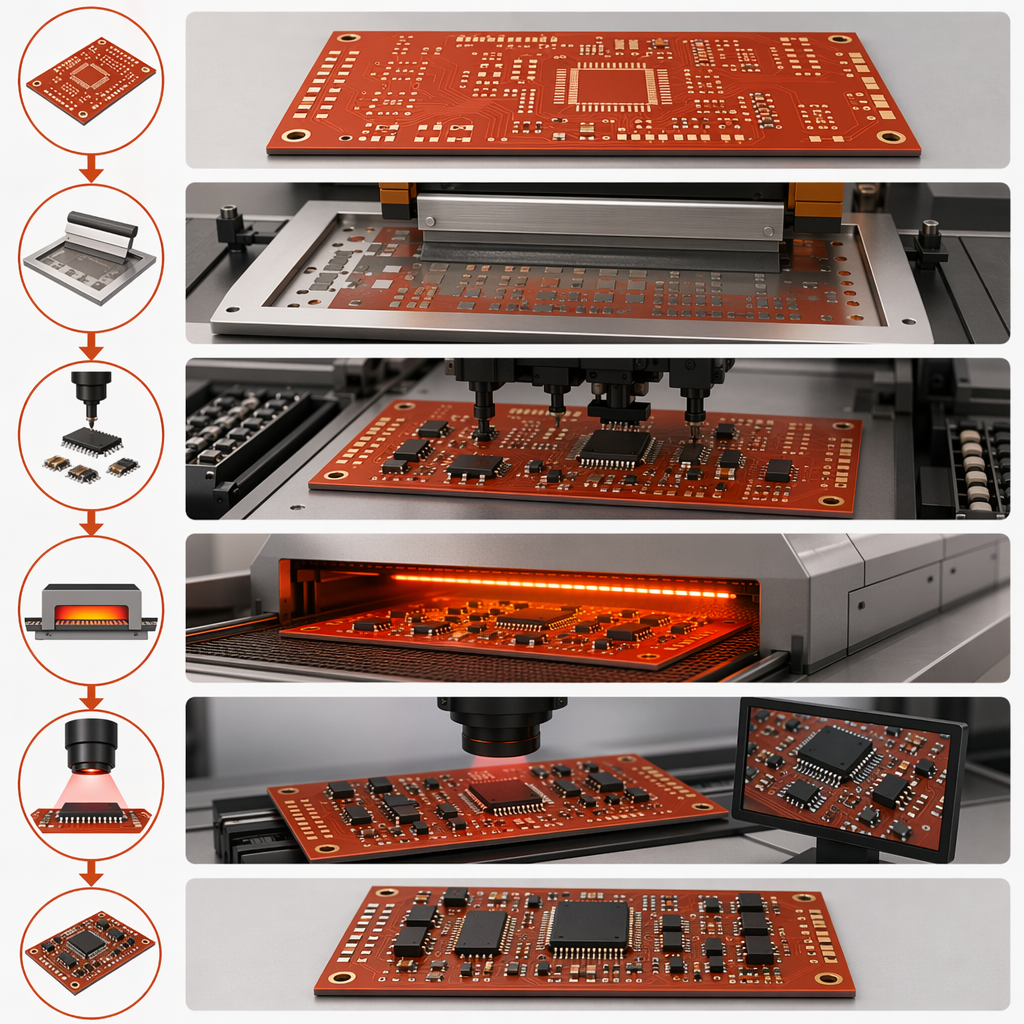

SMT assembly process flow
1
Material Prep
BOM verification & kitting
2
Solder Paste
3D SPI inspection
3
Pick & Place
High-speed placement
4
Reflow
12-zone profiling
5
3D AOI
Automated optical inspection
6
X-Ray
BGA/QFN verification
7
THT / DIP
Wave & selective soldering
8
ICT / FCT
Electrical & functional test
9
Pack & Ship
ESD-safe packaging
Value-Add Services

Beyond Assembly

Complete turn-key manufacturing from bare PCB to finished product.

Box Build
Full electromechanical assembly — enclosure integration, wiring harness installation, labeling, and final packaging. Ready-to-ship product.
Conformal Coating
Automated spray coating with acrylic, silicone, or polyurethane. Protection against moisture, dust, chemicals, and temperature extremes for harsh environments.
Cable & Wire Harness
Custom cable assembly, wire harness fabrication, crimping, and testing. UL-certified wire and connector options.
Potting & Encapsulation
Epoxy or silicone potting for vibration resistance, thermal management, and IP-rated waterproofing of sensitive electronics.
Functional Testing
Custom FCT fixtures built to your test specification. Full functional verification of assembled products before shipment.
Programming & Labeling
IC programming (ISP/ICT), firmware flashing, serial number labeling, barcode/RFID tagging for traceability.
Ordering Info

Turnaround & MOQ

Prototype PCBA

  • MOQ: 1 piece
  • Lead Time: 5-7 working days
  • Quick-Turn: 3 days (available)
  • SMT + THT components
  • Free DFM review
  • 100% AOI + X-Ray included

Volume Production

  • MOQ: Negotiable
  • Lead Time: 10-15 working days
  • Consigned or turn-key
  • Full BOM procurement support
  • Ongoing QC reports per batch
  • Dedicated NPI engineer
